Abstract
Urologic trauma encompasses a spectrum of injuries involving the kidney, ureter, bladder, and urethra, with management strategies increasingly emphasizing organ preservation through minimally invasive, image-guided approaches. The updated American Association for the Surgery of Trauma 2025 grading system provides the most recent guideline for renal trauma classification, reflecting evolving imaging standards and management principles. In parallel, interventional radiology (IR) has assumed an increasingly important role in contemporary trauma care, offering effective, organ-preserving solutions through endovascular and percutaneous techniques. Renal trauma, the most frequent form of genitourinary injury, is now primarily managed non-operatively in hemodynamically stable patients, with transcatheter arterial embolization and stent-based repair serving as cornerstones of hemorrhage control and renal salvage in high-grade lesions. Clinical evidence demonstrates that selective or superselective embolization achieves high technical success and renal preservation, consolidating IR as a key component of multidisciplinary trauma management. Injuries to the lower urinary tract remain complex, but minimally invasive, image-guided interventions are increasingly recognized as integral to modern care, particularly in controlling hemorrhage and preserving function. Superselective embolization, percutaneous urine diversion, and fluoroscopic urethral realignment exemplify how IR provides life-saving, organ-preserving options for ureteral, bladder, and urethral trauma. Collectively, these developments underscore the expanding impact of IR across the full spectrum of urologic trauma management.
-
Keywords: Urologic injuries; Kidney injuries; Interventional radiology; Embolization, Therapeutic; Endovascular procedures
Introduction
Urologic trauma encompasses a wide spectrum of renal and lower urinary tract injuries, each with distinct diagnostic challenges and management considerations [
1-
8]. Advances in multidetector computed tomography (MDCT) have markedly improved detection of vascular and collecting system injuries [
1], and the 2025 update of the American Association for the Surgery of Trauma (AAST) Kidney Injury Scale reflects these contemporary imaging standards [
9]. In parallel, interventional radiology (IR) has become increasingly central to trauma care, offering minimally invasive, organ-preserving options for hemorrhage control and urinary tract reconstruction [
10-
15].
This review provides an updated overview of renal-trauma mechanisms, imaging evaluation, and the revised AAST 2025 classification, with emphasis on the indications, techniques, and outcomes of IR-based management. It also summarizes the expanding role of image-guided interventions in ureteral, bladder, and urethral trauma, presenting an IR-focused framework to support decision-making across the full spectrum of urologic trauma.
Part 1. Kidney
Mechanisms of Renal Injury
Blunt Trauma
The kidney, a retroperitoneal organ shielded by ribs, Gerota’s fascia, and perirenal fat, is most often injured by blunt mechanisms such as motor vehicle collisions or falls [
6,
7]. Injuries range from cortical laceration to perirenal hematoma and, in severe cases, complete parenchymal rupture [
6,
7]. Renal trauma occurs in approximately 8–10% of patients with abdominal trauma [
6]. Hemorrhage may extend into the collecting system, producing gross or microscopic hematuria [
12,
16].
High-energy deceleration injury, typical of high-speed collisions, can cause renal artery dissection, thrombosis, or avulsion [
17-
23]. Data from the National Trauma Data Bank report renal artery injury in 0.05% of blunt trauma cases, accounting for 2.5–4% of all renal injuries, more often than in penetrating trauma [
7]. Hematuria may be absent, delaying diagnosis [
7]. Renal artery occlusion usually follows intimal disruption and thrombosis [
17-
19]. On contrast-enhanced CT, global nonenhancement with a delayed cortical rim sign suggests collateral perfusion [
4,
18].
Penetrating Trauma
Penetrating renal injuries—including stab, gunshot, and iatrogenic tract injuries from nephrostomy or biopsy—create narrow parenchymal tracts and carry a high risk of arterial disruption, pseudoaneurysm, or arteriovenous fistula (AVF) [
16,
24]. Patients often present with persistent hematuria, occasionally progressing to hemodynamic instability or hemorrhagic shock [
16,
25-
27].
Iatrogenic vascular injury is increasingly observed due to the widespread use of percutaneous nephrostomy, lithotripsy, and renal biopsy. Vascular complications after biopsy, including AVF, were among the first indications for selective renal embolization. Delayed bleeding from pseudoaneurysm or AVF remains a characteristic presentation [
28].
Historically, retrograde ureteropyelography and intravenous pyelography were used to evaluate renal trauma but were limited in assessing parenchymal integrity and are now obsolete [
3].
Ultrasonography (US) is a rapid, bedside, noninvasive tool in acute trauma, mainly for detecting intraperitoneal fluid within the Focused Assessment with Sonography for Trauma, commonly known as the FAST protocol. However, its sensitivity for retroperitoneal hemorrhage and solid organ injury is limited [
5,
29].
Contrast-enhanced CT (CECT) is now the diagnostic gold standard for suspected renal injury [
1,
4,
30,
31]. Modern MDCT provides rapid, high-resolution imaging even in unstable patients, delineating laceration depth, arterial extravasation, segmental devascularization, urinary extravasation, and associated abdominal trauma through arterial, venous, and delayed phases [
3]. CT is essential in patients with gross hematuria, those with microscopic hematuria and hemodynamic instability, or those sustaining high-energy mechanisms [
1,
4,
30,
31].
Conventional angiography, once a diagnostic modality, is now primarily therapeutic. It is reserved for endovascular management of traumatic AVF, pseudoaneurysm, or active arterial bleeding, and for targeted assessment of renovascular injury when CT is inconclusive [
28,
32-
36].
The AAST Kidney Injury Scale remains the standard framework for grading renal trauma [
8,
9,
28]. Earlier versions focused on laceration depth and perirenal hematoma, whereas the 2025 update incorporates contemporary CT features and links injury patterns to expected management, emphasizing collecting system disruption, segmental devascularization, and major vascular injury [
2,
9,
30]. In this revision, perirenal hematoma is quantitatively assessed using the hematoma radial distance (HRD), defined as the longest perpendicular distance from the renal parenchymal surface to the outer hematoma margin within the superior–inferior boundaries of the kidney. HRD thresholds now contribute to distinguishing lower-grade from higher-grade contusions and lacerations [
9].
High-grade categories now include active arterial extravasation, urinary leak, segmental vascular injury, and main hilar disruption, which correlate with the need for IR-directed therapy rather than immediate nephrectomy [
28,
37]. The scale ranges from minor subcapsular hematoma or contusion (grades I–II) to deep laceration with urinary extravasation or segmental devascularization (grade IV) and to shattered kidney or hilar avulsion with global devascularization (grade V).
The 2025 revision also integrates IR algorithms: grades I–II are observed; most grade III and many grade IV lesions are managed non-operatively with transcatheter arterial embolization (TAE) when active bleeding or expanding hematoma is present; and even selected grade V cases may be treated with embolization or stent repair if hemodynamic stability is achieved [
33,
34,
36]. This evolution reflects the shift from mandatory nephrectomy to kidney-preserving, image-guided therapy in stabilized patients [
33,
34,
36]. Imaging criteria extracted from the AAST 2025 Kidney Injury Scale are presented in
Table 1.
The main goals in renal trauma management are rapid hemorrhage control, renal preservation, and prevention of complications such as urinary leakage or sepsis [
8,
11,
38-
40]. Modern practice favors non-operative or minimally invasive management supported by advances in CT imaging, critical care, and endovascular techniques [
1,
6,
10,
13,
36,
41,
42].
Blunt Renal Injury
Blunt trauma accounts for most renal injuries. Low-grade (AAST I–II) lesions, nearly 75% of cases, usually heal with conservative treatment—hemodynamic monitoring, transfusion as needed, and serial hematocrit checks [
12,
16,
37].
Management of grades III–IV is individualized. In hemodynamically stable patients, non-operative management is generally feasible. The AAST 2025 revision defines active arterial bleeding as a grade IV criterion, underscoring selective or superselective TAE as an appropriate intervention [
9,
28,
37,
42]. Embolization is indicated when CT shows active extravasation, enlarging hematoma, or segmental vascular injury [
33,
34,
36].
Surgical exploration is now limited to refractory hemodynamic instability, combined visceral injury,or major urinary extravasation with > 50% devitalized parenchyma. Even in grade V injuries, published clinical experiences demonstrate that selective embolization can achieve kidney preservation in selected stable patients [
33,
36]. Kwon et al. [
34] demonstrated that superselective TAE can be effectively applied even in grade V renal trauma, yielding high technical and renal-preservation success. These results support its adoption as a viable first-line option for hemodynamically stabilized patients whenever feasible.
Penetrating Renal Injury
Penetrating trauma—typically stab or gunshot wounds—has a higher incidence of vascular injury, pseudoaneurysm, and AVF formation [
16]. Management parallels that of blunt injury: hemodynamic stabilization, bleeding control, and renal preservation.
Non-operative management is suitable for stable patients with limited parenchymal disruption and minimal urinary leak [
12]. Embolization serves as an adjunct or alternative to surgery when localized arterial bleeding or pseudoaneurysm is identified [
16,
43]. In unstable patients or those with bowel contamination, surgical exploration or nephrectomy remains necessary.
Delayed hemorrhage—2–3 weeks after injury—is common in penetrating or high-grade trauma due to pseudoaneurysm or AVF formation and is usually controlled by targeted embolization [
16,
19].
Renal Artery Injury
Renal artery trauma (AAST IV–V) includes dissection, thrombosis, and avulsion, often resulting in devascularization [
17-
19]. Treatment options comprise nephrectomy, surgical repair, endovascular intervention, or observation. Ischemia beyond two hours generally causes irreversible damage [
17,
19,
32,
41].
Endovascular stent placement has largely replaced open repair, offering effective revascularization with lower morbidity [
44]. Stent-graft repair is preferred for focal dissection or partial avulsion of the main renal artery with preserved distal flow, while TAE remains the treatment of choice for active bleeding or pseudoaneurysm [
44]. These endovascular approaches illustrate the principle of image-guided hemorrhage control and renal salvage over nephrectomy whenever anatomically possible [
23,
43,
45].
Endovascular therapy is central to modern renal-trauma care, providing rapid hemostasis and renal preservation while avoiding nephrectomy [
23,
45]. Two main approaches are used—TAE and endovascular stent-graft placement—depending on vascular injury pattern and hemodynamic status.
Indications and Timing
TAE is indicated for active arterial extravasation in AAST IV–V injuries, pseudoaneurysm, AVF, delayed hemorrhage, and rebleeding after transient stabilization [
33,
34,
36]. It may also be applied prophylactically when a transected segmental artery carries a high rupture risk [
33,
34,
36].
Damage-control interventional radiology—often referred to as DCIR—prioritizes expedient hemostasis over exhaustive superselective attempts; if microcatheterization fails within ~10 minutes, proximal or sacrifice-level embolization is justified to save life before organ [
46].
Technical Considerations
Initial angiography with abdominal aortography defines renal arterial anatomy and accessory branches [
45]. Coaxial microcatheter systems permit superselective access to segmental branches, minimizing infarction [
34]. Superselective TAE is ideal when feasible, whereas proximal embolization may be necessary in unstable patients for damage control [
45,
46].
Embolic Materials
Choice of embolic agent depends on vessel size and bleeding pattern. Gelatin sponge is preferred for diffuse low-pressure bleeding because it provides temporary occlusion. N-butyl cyanoacrylate (NBCA) offers rapid permanent occlusion for distal or multifocal bleeding. Coils are used for large or high-flow AVFs; detachable types allow precise deployment and reduce migration risk [
13,
35,
45].
Endovascular Stent Placement
Stent-graft placement is indicated for main renal-artery dissection, avulsion, or focal transection with potential for revascularization [
20-
23,
47]. It is also used for contained hemorrhage with preserved distal flow or iatrogenic rupture. Microguidewires and angled sheaths facilitate precise deployment.
Both balloon-expandable and self-expanding stents achieve effective revascularization and exclude extravasation, providing a kidney-preserving alternative to nephrectomy [
14,
21].
Contraindications and Complications
No absolute contraindications exist, but care is required in patients with renal dysfunction or infection because contrast administration may worsen the injury [
45]. In solitary kidneys, maximal selectivity is recommended, although life-saving embolization takes precedence.
Complications include puncture-site bleeding, non-target embolization, and coil migration, which can be corrected with a snare catheter. Post-embolization syndrome—flank pain, leukocytosis, and low-grade fever—usually resolves within 48 hours with supportive care [
34,
36].
Renal embolization was first described by Bookstein et al. [
24] in 1973 for post-biopsy AVF treatment and has since become integral to renal-trauma management. The evolution of therapy over the past two decades highlights the transition from surgical to conservative and endovascular approaches for high-grade (AAST IV–V) injuries (
Table 2).
In a retrospective clinical series, Kwon et al. [
34] achieved an 81% technical success and 79% renal-preservation rate in patients with grade V injuries treated with superselective TAE, reinforcing that endovascular management ensures durable hemostasis and organ salvage even in complex high-grade vascular trauma. Brewer et al. [
33] similarly achieved hemostasis without nephrectomy in nine unstable grade V patients and reported durable renal function on follow-up.
Santucci et al. [
35] noted that over 78% of high-grade injuries were surgically managed in 2000, whereas May et al. [
40] later documented 75% non-operative management—illustrating the paradigm shift toward IR-based care. Hagiwara et al. [
14] prospectively treated grade III–V injuries with early angiography, achieving embolization success in 8 of 21 patients and > 90% avoidance of laparotomy. These findings confirm that TAE achieves rapid hemostasis and renal salvage even in high-grade trauma.
For renovascular trauma, Whigham et al. [
23] first applied endovascular stenting in 1995; subsequent studies demonstrated durable perfusion and parenchymal preservation [
20,
22,
47]. Although short-term results are excellent, long-term renal-function data remain limited, underscoring the need for multicenter registries [
10,
13].
Grange et al. [
10] reported 93.7% clinical success in 79 emergency renal embolizations with minimal rebleeding and no major complications. Collectively, evidence from 2000–2025 supports TAE and stent-based therapy as front-line modalities for hemodynamically stabilized high-grade renal trauma, markedly reducing nephrectomy rates and preserving renal function [
13,
33,
34,
36]. Continuous advances in embolic materials, rapid trauma imaging, and integration of interventional radiologists within trauma teams will further enhance outcomes and consolidate endovascular therapy as the standard of care for complex renal injuries [
13].
Part 2. Ureter
Epidemiology and Mechanisms
Ureteral injury is uncommon, accounting for less than 1% of all genitourinary injuries [
48], yet it is clinically significant because of delayed diagnosis and the potential for urinoma, infection, and ischemic stricture [
49]. Iatrogenic injury during gynecologic or colorectal procedures remains the most frequent cause, but blunt or penetrating trauma can also damage small peri-ureteral branches, producing concealed retroperitoneal bleeding [
50]. When hemodynamic instability or unexplained hematoma persists, selective angiography should be considered.
CECT with delayed excretory phase provides the initial roadmap for identifying contrast leakage or abrupt cutoff [
51]. Minor arterial bleeding is often angiographically occult, but cone-beam CT (CBCT) can reveal subtle pseudoaneurysms arising from ureteral branches. Park et al. demonstrated that CBCT can localize bleeding points otherwise invisible on standard angiography, guiding rapid and precise embolization [
52].
Under fluoroscopic guidance, a 1.5–1.7 Fr microcatheter is advanced into the affected ureteric branch arising from the renal artery, aorta, or common/internal iliac artery. NBCA diluted with iodized oil or detachable coils are selected according to flow and anatomy. Superselective embolization achieves immediate hemostasis without compromising ureteral perfusion. In Park’s case, clinical result was favorable, with no ischemic strictures on follow-up [
52]. Case reports by Maleux et al. [
49] and Kase et al. [
50] documented durable control of postoperative or iatrogenic bleeding after microcoil or NBCA embolization. More recently, Saiga et al. [
51] reported pseudoaneurysms in ureteral branches of the renal artery successfully treated by combined NBCA-coil therapy. These results confirm that distal embolization is both safe and definitive when performed under flow control. Across contemporary literature, technical success of ureteric-branch embolization approaches 100%, with negligible ischemic complications [
49-
52].
Part 3. Bladder
Epidemiology and Mechanisms
Bladder trauma represents approximately 1–2% of genitourinary injuries and is frequently associated with pelvic fractures or penetrating pelvic wounds. Most extraperitoneal ruptures heal with catheter drainage, while intraperitoneal dome ruptures require surgical repair. However, focal arterial bleeding from the vesical branches of the internal iliac artery constitutes a specific subset in which IR plays a hemostatic role [
53].
The superior and inferior vesical arteries supply the bladder base and dome through anastomotic channels. Injury to these vessels—whether iatrogenic, traumatic, or postoperative—can result in massive hematuria. When cystoscopy fails to localize the bleeding focus, angiography can demonstrate extravasation along the bladder wall. Superselective embolization is performed with a microcatheter advanced into the vesical branch under roadmap guidance. Embolic agents include gelatin sponge, microcoils, or NBCA depending on vessel caliber and accessibility. Early reports, including Kim et al. [
54], showed that distal or superselective vesical artery embolization can achieve immediate hemostasis without significant ischemic complications. A recent case report by Vanheer et al. [
53] further confirmed complete bleeding control and preserved bladder function following bilateral vesical artery embolization.
When urethral catheterization is contraindicated, percutaneous suprapubic cystostomy performed by interventional radiologists under image guidance provides urinary diversion and pressure relief, facilitating healing of extraperitoneal tears. Complications such as bladder necrosis are now exceptional and linked to older, non-selective embolization practices. Modern IR techniques using microcatheters and controlled embolic material delivery ensure organ preservation and functional recovery [
53,
54].
Part 4. Urethra
Epidemiology and Mechanisms
Urethral injuries, particularly those associated with pelvic fracture, remain among the most challenging problems in urologic trauma. They account for approximately 10% of genitourinary trauma and carry high morbidity due to the risk of incontinence, impotence, and recurrent stricture [
55,
56].
Although urethral trauma typically presents with urinary retention and extravasation rather than active bleeding, recent literature has reported rare but significant arterial hemorrhage. De Bondt et al. described two cases of post-traumatic urethral hemorrhage originating from arteriospongious fistulae, successfully managed by superselective embolization with microcoils and an ethylene-vinyl alcohol–based liquid embolic agent, achieving complete hemostasis without ischemic complications [
57]. This finding expands the role of IR in urethral trauma to include targeted embolization for refractory hemorrhage.
Posterior urethral injury differs fundamentally from anterior injury in its mechanism and management. While anterior urethral injuries usually result from straddle trauma or instrumentation and can often be managed conservatively with catheter drainage, posterior urethral disruptions occur almost exclusively with pelvic fractures. In these cases, shearing forces separate the membranous urethra from the prostatic apex, creating complete luminal discontinuity surrounded by hematoma and soft-tissue distortion, conditions that complicate endoscopic repair [
58-
67].
Under combined ultrasound and fluoroscopic guidance, a percutaneous cystostomy tract is first created into the bladder to secure antegrade access. A 4 or 5-Fr angiographic catheter is inserted, and contrast is injected to delineate the proximal urethral stump. This step provides spatial orientation for aligning the disrupted segments. Through the retrograde route, a hydrophilic guidewire and angled catheter are advanced from the external meatus toward the site of disruption under fluoroscopy. The two approaches are visualized simultaneously with biplane fluoroscopy, allowing real-time assessment of the proximal and distal stumps in orthogonal projections.
When the luminal ends can be approximated, the retrograde wire is advanced into the bladder to establish a direct channel. If the two lumina cannot be directly traversed, a snare catheter introduced through the cystostomy tract can capture the retrograde wire to create a through-and-through connection. This technique is particularly valuable when hematoma or displacement prevents direct passage [
15]. Once the continuous tract is established, a 14–18 Fr Foley or silicone catheter is gently advanced across the defect with the balloon seated in the bladder. The catheter is typically left in place for 4–6 weeks to permit epithelial healing and mucosal alignment. Follow-up voiding cystourethrography is performed prior to catheter removal to confirm continuity and absence of urine leakage [
15].
This fluoroscopic realignment has the advantage of avoiding the need for lithotomy positioning or general anesthesia in patients with pelvic fractures, making it particularly suitable for polytrauma settings [
15]. This sequence demonstrates the coordinated precision of IR and urology in re-establishing urethral continuity through minimally invasive, image-guided realignment and emphasizes the principle of functional restoration with minimal disruption, integrating radiologic precision into traditional reconstructive paradigms.
Conclusion
Renal trauma management has evolved toward organ-preserving, minimally invasive strategies, supported by diagnostic and therapeutic advances in MDCT and IR, as well as by the updated AAST 2025 grading system. While most low-grade injuries recover with conservative treatment, TAE and stent-based techniques now constitute the cornerstone of hemorrhage control and renal salvage in high-grade trauma. The integration of IR into trauma care has markedly improved both survival and kidney-preservation outcomes.
Injury to the lower urinary tract remains a multidisciplinary challenge, with the role of interventional radiology still limited but steadily expanding through accumulating experience and research. Early diagnosis and minimally invasive, image-guided interventions are increasingly recognized as integral to modern management, particularly in controlling hemorrhage and preserving function. Superselective embolization, percutaneous urine diversion, and fluoroscopic urethral realignment exemplify how IR offers life-saving, organ-preserving solutions for ureteral, bladder, and urethral trauma.
Author contributions
Conceptualization, investigation, and manuscript writing: C.H.J. All aspects of the work were performed by the corresponding author.
Acknowledgments
The author gratefully acknowledges the support of Professors Ho Jong Chun, Yoo Dong Won, Dong Jae Shim, and Il Jung Kim during the sabbatical year that made this work possible.
Funding
None.
Conflict of interest
The author declares no conflicts of interest.

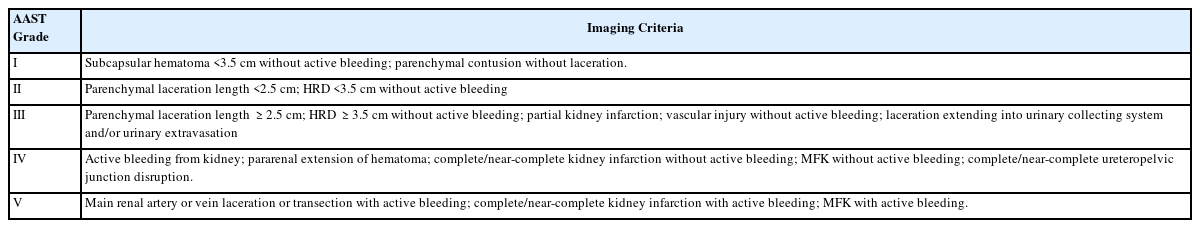

Table 1.Kidney Organ Injury Scale (AAST 2025, Imaging Criteria Only)
Table 1.
|
AAST Grade |
Imaging Criteria |
|
I |
Subcapsular hematoma <3.5 cm without active bleeding; parenchymal contusion without laceration. |
|
II |
Parenchymal laceration length <2.5 cm; HRD <3.5 cm without active bleeding |
|
III |
Parenchymal laceration length ≥2.5 cm; HRD ≥3.5 cm without active bleeding; partial kidney infarction; vascular injury without active bleeding; laceration extending into urinary collecting system and/or urinary extravasation |
|
IV |
Active bleeding from kidney; pararenal extension of hematoma; complete/near-complete kidney infarction without active bleeding; MFK without active bleeding; complete/near-complete ureteropelvic junction disruption. |
|
V |
Main renal artery or vein laceration or transection with active bleeding; complete/near-complete kidney infarction with active bleeding; MFK with active bleeding. |
Table 2.Management trends and outcomes in high-grade (AAST IV–V) renal trauma
Table 2.
|
Study |
Year |
No. of Cases (Gr IV, V) |
Management of Grade IV Injury |
Management of Grade V Injury |
Key Findings / Relevance to IR |
|
Santucci et al. [35] |
2000 |
2,047* (not stratified) |
22% conservative / 9% nephrectomy / 69% renorrhaphy |
Early era showing surgery dominant. |
|
Kuo et al. [39] |
2002 |
95 (16, 8) |
56% conservative / 25% nephrectomy / 19% exploratory |
25% conservative / 63% nephrectomy |
Initial shift toward selective non-operative approach. |
|
Wright et al. [8] |
2006 |
6,892 (530, 228) |
78% conservative / 22% nephrectomy |
44% conservative / 56% nephrectomy |
Large registry showing growing non-operative trend. |
|
Elashry et al. [11] |
2008 |
72 (57, 15) |
84% conservative / 16% surgical |
20% conservative / 80% surgical |
IR emerging as bridge to surgery. |
|
Dugi et al. [38] |
2010 |
33 (33,0) |
4A: predominantly conservative; 4B: higher need for intervention |
– |
Proposed Grade IV risk stratification, supporting selective intervention and predominant non-operative care. |
|
May et al. [40] |
2016 |
47 (39, 8) |
97% conservative / 3% surgical |
75% conservative / 25% surgical |
Contemporary series confirming conservative success. |
|
Kwon et al. [34] |
2022 |
16 (0, 16) |
– |
81% technical success, 79% renal preservation, 0% mortality after superselective RAE |
Demonstrated effective superselective RAE with meaningful renal parenchymal salvage. |
|
Grange et al. [10] |
2024 |
79 (5, 7) |
93.7% clinical success, 3.8% re-embolization |
Preserved renal function in > 90% of cases |
Confirms modern endovascular therapy as first-line for severe renal bleeding. |
References
- 1. Alonso RC, Nacenta SB, Martinez PD, Guerrero AS, Fuentes CG. Kidney in danger: CT findings of blunt and penetrating renal trauma. Radiographics. 2009;29:2033-2053.
- 2. Carpio F, Morey AF. Radiographic staging of renal injuries. World J Urol. 1999;17:66-70.
- 3. Cass A, Vieira J. Comparison of IVP and CT findings in patients with suspected severe renal injury. Urology. 1987;29:484-487.
- 4. Goldman SM, Sandler CM. Urogenital trauma: imaging upper GU trauma. Eur J Radiol. 2004;50:84-95.
- 5. McGahan JP, Richards JR, Jones CD, Gerscovich EO. Use of ultrasonography in the patient with acute renal trauma. J Ultrasound Med. 1999;18:207-213.
- 6. Patel P, Duttaroy D, Kacheriwala S. Management of renal injuries in blunt abdominal trauma. J Res Med Dent Sci. 2014;2:38-42.
- 7. Sangthong B, Demetriades D, Martin M, Salim A, Brown C, Inaba K, et al. Management and hospital outcomes of blunt renal artery injuries: analysis of 517 patients from the National Trauma Data Bank. J Am Coll Surg. 2006;203:612-617.
- 8. Wright JL, Nathens AB, Rivara FP, Wessells H. Renal and extrarenal predictors of nephrectomy from the national trauma data bank. J Urol. 2006;175:970-975.
- 9. Keihani S, Tominaga GT, Matta R, Gross JA, Cribari C, Kaups KL, et al. Kidney organ injury scaling: 2025 update. Journal of Trauma and Acute Care Surgery. 2023;10.1097.
- 10. Grange R, Magand N, Lutz N, Lanoiselee J, Leroy S, Boutet C, et al. Clinical outcomes after emergency transarterial renal embolization: a retrospective study. CVIR Endovasc. 2024;7:88.
- 11. Elashry OM, Dessouky BA. Conservative Management of Major Blunt Renal Trauma with Extravasation: A Viable Option? Eur J Trauma Emerg Surg. 2009;35:115.
- 12. Broghammer JA, Fisher MB, Santucci RA. Conservative management of renal trauma: a review. Urology. 2007;70:623-629.
- 13. Kitamura R, Maruhashi T. The Role of Interventional Radiology in Renal Trauma: A Narrative Review. Interv Radiol (Higashimatsuyama). 2025;10:e20250029.
- 14. Hagiwara A, Sakaki S, Goto H, Takenega K, Fukushima H, Matuda H, et al. The role of interventional radiology in the management of blunt renal injury: a practical protocol. J Trauma. 2001;51:526-531.
- 15. Jeon CH, Kwon H, Kim JH, Bae M, Wang IJ, Kim H, et al. Complete Posterior Urethral Disruption Accompanied by Complex Pelvic Fractures: Clinical Outcomes of Fluoroscopic Primary Posterior Urethral Realignment. J Vasc Interv Radiol. 2021;32:343-349.
- 16. Armenakas NA, Duckett CP, McAninch JW. Indications for nonoperative management of renal stab wounds. J Urol. 1999;161:768-771.
- 17. Brown MF, Graham JM, Mattox KL, Feliciano DV, DeBakey ME. Renovascular trauma. Am J Surg. 1980;140:802-805.
- 18. Bruce LM, Croce MA, Santaniello JM, Miller PR, Lyden SP, Fabian TC. Blunt renal artery injury: incidence, diagnosis, and management. Am Surg. 2001;67:550-556.
- 19. Knudson MM, Harrison PB, Hoyt DB, Shatz DV, Zietlow SP, Bergstein JM, et al. Outcome after major renovascular injuries: a Western trauma association multicenter report. J Trauma. 2000;49:1116-1122.
- 20. Goodman DN, Saibil EA, Kodama RT. Traumatic intimal tear of the renal artery treated by insertion of a Palmaz stent. Cardiovasc Intervent Radiol. 1998;21:69-72.
- 21. Lopera JE, Suri R, Kroma G, Gadani S, Dolmatch B. Traumatic occlusion and dissection of the main renal artery: endovascular treatment. J Vasc Interv Radiol. 2011;22:1570-1574.
- 22. Paul JL, Otal P, Perreault P, Galinier P, Baunin C, Puget C, et al. Treatment of posttraumatic dissection of the renal artery with endoprosthesis in a 15-year-old girl. J Trauma. 1999;47:169-172.
- 23. Whigham Jr CJ, Bodenhamer JR, Miller JK. Use of the Palmaz stent in primary treatment of renal artery intimal injury secondary to blunt trauma. J Vasc Interv Radiol. 1995;6:175-178.
- 24. Bookstein JJ, Goldstein HM. Successful management of postbiopsy arteriovenous fistula with selective arterial embolization. Radiology. 1973;109:535-536.
- 25. Carroll PR, McAninch JW, Klosterman P, Greenblatt M. Renovascular trauma: risk assessment, surgical management, and outcome. J Trauma. 1990;30:547-554.
- 26. Cass A, Bubrick M, Luxenberg M, Gleich P, Smith C. Renal pedicle injury in patients with multiple injuries. J Trauma. 1985;25:892-896.
- 27. Plainfosse M, Calonge VM, Beyloune‐Mainardi C, Glotz D, Duboust A. Vascular complications in the adult kidney transplant recipient. J Clin Ultrasound. 1992;20:517-527.
- 28. Santucci RA, McAninch JW, Safir M, Mario LA, Segal MR. Validation of the American Association for the Surgery of Trauma organ injury severity scale for the kidney. J Trauma. 2001;50:195-200.
- 29. Perry M, Porte M, Urwin G. Limitations of ultrasound evaluation in acute closed renal trauma. J R Coll Surg Edinb. 1997;42:420-422.
- 30. Bretan Jr PN, McAninch JW, Federle MP, Jeffrey Jr RB. Computerized tomographic staging of renal trauma: 85 consecutive cases. J Urol. 1986;136:561-565.
- 31. Mcaninch JW, Federle MP. Evaluation of renal injuries with computerized tomography. J Urol. 1982;128:456-460.
- 32. Beaujeux R, Saussine C, Al-Fakir A, Boudjema K, Roy C, Jacqmin D, et al. Superselective endo-vascular treatment of renal vascular lesions. J Urol. 1995;153:14-17.
- 33. Brewer Jr ME, Strnad BT, Daley BJ, Currier RP, Klein FA, Mobley JD, et al. Percutaneous embolization for the management of grade 5 renal trauma in hemodynamically unstable patients: initial experience. J Urol. 2009;181:1737-1741.
- 34. Kwon H, Bae M, Jeon CH, Hwangbo L, Lee CM, Kim CW. Volume preservation of a shattered kidney after blunt trauma by superselective renal artery embolization. Diagn Interv Radiol. 2022;28:72-78.
- 35. Santucci RA, McAninch JW. Diagnosis and management of renal trauma: past, present, and future. J Am Coll Surg. 2000;191:443-451.
- 36. Stewart AF, Brewer Jr ME, Daley BJ, Klein FA, Kim ED. Intermediate-term follow-up of patients treated with percutaneous embolization for grade 5 blunt renal trauma. J Trauma. 2010;69:468-470.
- 37. Matthews LA, Smith EM, Spirnak JP. Nonoperative treatment of major blunt renal lacerations with urinary extravasation. J Urol. 1997;157:2056-2058.
- 38. Dugi DD, Morey AF, Gupta A, Nuss GR, Sheu GL, Pruitt JH. American Association for the Surgery of Trauma grade 4 renal injury substratification into grades 4a (low risk) and 4b (high risk). J Urol. 2010;183:592-597.
- 39. Kuo RL, Eachempati SR, Makhuli MJ, Reed RL. Factors affecting management and outcome in blunt renal injury. World J Surg. 2002;26:416-419.
- 40. May AM, Darwish O, Dang B, Monda JJ, Adsul P, Syed J, et al. Successful Nonoperative Management of High‐Grade Blunt Renal Injuries. Adv Urol. 2016;2016:3568076.
- 41. McGuire J, Bultitude MF, Davis P, Koukounaras J, Royce PL, Corcoran NM. Predictors of outcome for blunt high grade renal injury treated with conservative intent. J Urol. 2011;185:187-191.
- 42. Keihani S, Rogers DM, Putbrese BE, Moses RA, Zhang C, Presson AP, et al. A nomogram predicting the need for bleeding interventions after high-grade renal trauma: Results from the American Association for the Surgery of Trauma Multi-institutional Genito-Urinary Trauma Study (MiGUTS). J Trauma. 2019;86:774-782.
- 43. Fisher R, Ben-Menachem Y, Whigham C. Stab wounds of the renal artery branches: angiographic diagnosis and treatment by embolization. AJR Am J Roentgenol. 1989;152:1231-1235.
- 44. Howell GM, Peitzman AB, Nirula R, Rosengart MR, Alarcon LH, Billiar TR, et al. Delay to therapeutic interventional radiology postinjury: time is of the essence. J Trauma. 2010;68:1296-1300.
- 45. Pryor JP, Braslow B, Reilly PM, Gullamondegi O, Hedrick JH, Schwab CW. The evolving role of interventional radiology in trauma care. J Trauma. 2005;59:102-104.
- 46. Matsumoto J, Lohman B, Morimoto K, Ichinose Y, Hattori T, Taira Y. Damage control interventional radiology (DCIR) in prompt and rapid endovascular strategies in trauma occasions (PRESTO): a new paradigm. Diagn Interv Imaging. 2015;96:687-691.
- 47. Villas PA, Cohen G, Putnam SG, Goldberg A, Ball D. Wallstent placement in a renal artery after blunt abdominal trauma. J Trauma. 1999;46:1137-1139.
- 48. Mondie C, Maguire NJ, Rentea RM. Retroperitoneal Hematoma. In. StatPearls. Treasure Island (FL); 2025.
- 49. Maleux G, Stockx L, Wilms G, Bogaert G, Marchal G. Postoperative retroperitoneal hemorrhage due to a bleeding ureteric artery: treatment by transcatheter embolization. Eur Radiol. 2001;11:34-36.
- 50. Kase DJ, Crystal KS, Naidich JB, Badillo FL, Waldbaum RS. Embolization to control iatrogenic ureteral hemorrhage: a case report. J Urol. 1994;151:420-421.
- 51. Saiga A, Aramaki T, Sato R, Asahara K, Goto H. Embolization of pseudoaneurysms in the ureteral branch of the renal artery. CVIR Endovasc. 2023;6:51.
- 52. Park S. Embolization of traumatic ureteric artery bleeding. Korean J Interv Radiol. 2025;30:2-4.
- 53. Vanheer R, De Wever L, Maleux G. Posttraumatic hemorrhagic bladder rupture managed with transurethral foley catheter placement and bilateral transcatheter vesical artery embolization. Acta Chir Belg. 2023;123:427-429.
- 54. Kim MS, Hong HP, Kang KA, Lee YR, Joo KJ, Cho YS, et al. Superselective vesical artery embolization for intractable bladder hemorrhage related to pelvic malignancy. Acta Radiol. 2021;62:1229-1237.
- 55. Clark SS, Prudencio RF. Lower urinary tract injuries associated with pelvic fractures. Diagnosis and management. Surg Clin North Am. 1972;52:183-201.
- 56. Cohen JK, Berg G, Carl GH, Diamond DD. Primary endoscopic realignment following posterior urethral disruption. J Urol. 1991;146:1548-1550.
- 57. De Bondt S, Joniau S, Albersen M, Maleux G. Posttraumatic urethral hemorrhage associated with an arteriospongious fistula and managed with catheter-directed embolization: a report of 2 cases. CVIR Endovasc. 2025;8:77.
- 58. Clark WR, Patterson DE, Williams HJ. Primary radiologic realignment of membranous urethral disruptions. Urology. 1992;39:182-184.
- 59. Coffield KS, Weems WL. Experience with management of posterior urethral injury associated with pelvic fracture. J Urol. 1977;117:722-724.
- 60. Elshout PJ, Veskimae E, MacLennan S, Yuan Y, Lumen N, Gonsalves M, et al. Outcomes of Early Endoscopic Realignment Versus Suprapubic Cystostomy and Delayed Urethroplasty for Pelvic Fracture-related Posterior Urethral Injuries: A Systematic Review. Eur Urol Focus. 2017;3:545-553.
- 61. Jepson BR, Boullier JA, Moore RG, Parra RO. Traumatic posterior urethral injury and early primary endoscopic realignment: evaluation of long-term follow-up. Urology. 1999;53:1205-1210.
- 62. Koraitim MM. Pelvic fracture urethral injuries: the unresolved controversy. J Urol. 1999;161:1433-1441.
- 63. Light A, Gupta T, Dadabhoy M, Daniel A, Nandakumar M, Burrows A, et al. Outcomes Following Primary Realignment Versus Suprapubic Cystostomy with Delayed Urethroplasty for Pelvic Fracture-Associated Posterior Urethral Injury: A Systematic Review with Meta-Analysis. Curr Urol. 2019;13:113-124.
- 64. Londergan TA, Gundersen LH, van Every MJ. Early fluoroscopic realignment for traumatic urethral injuries. Urology. 1997;49:101-103.
- 65. Martinez-Pineiro L, Djakovic N, Plas E, Mor Y, Santucci RA, Serafetinidis E, et al. EAU Guidelines on Urethral Trauma. Eur Urol. 2010;57:791-803.
- 66. Moudouni SM, Patard JJ, Manunta A, Guiraud P, Lobel B, Guille F. Early endoscopic realignment of post-traumatic posterior urethral disruption. Urology. 2001;57:628-632.
- 67. Mouraviev VB, Coburn M, Santucci RA. The treatment of posterior urethral disruption associated with pelvic fractures: comparative experience of early realignment versus delayed urethroplasty. J Urol. 2005;173:873-876.
